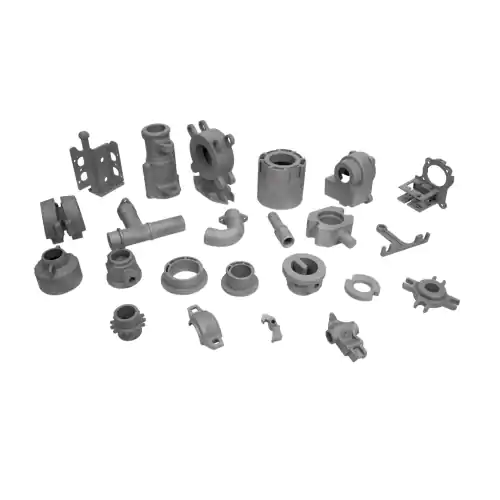

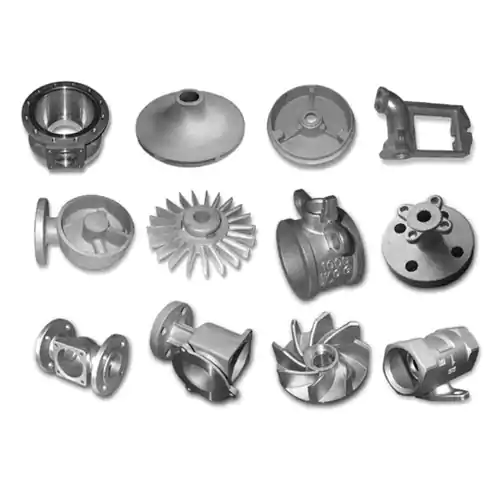

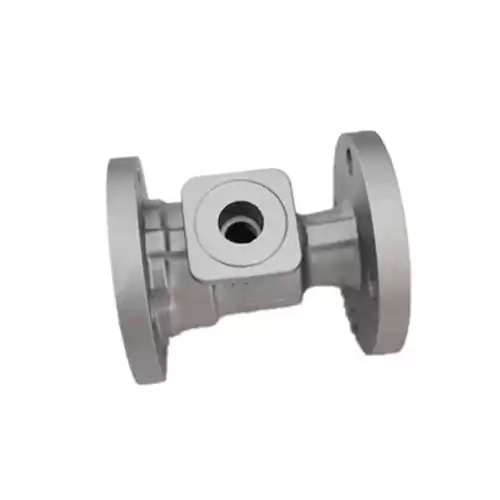

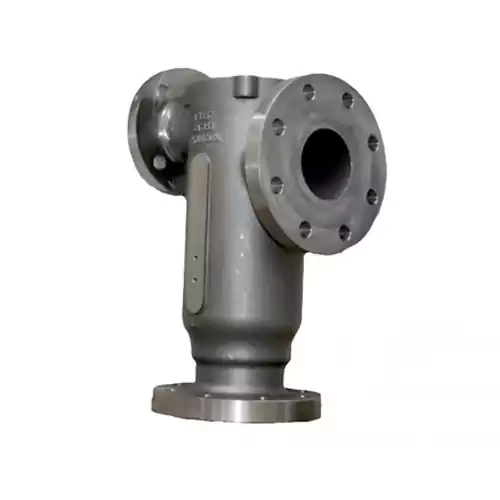

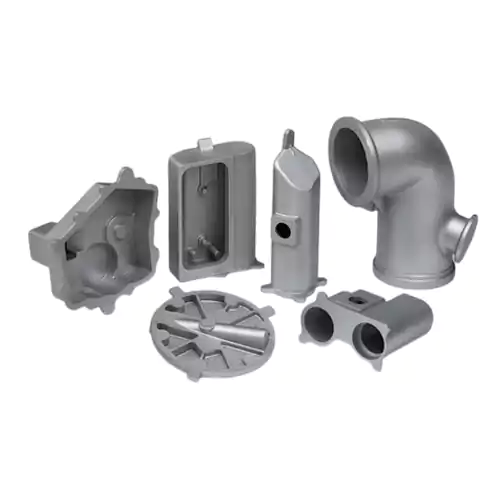

Investment Casting for Pump Components

Supercast International offers a diverse range of investment castings such as engineering components, valve castings,pump castings, industrial fittings, automotive parts, marine parts and specialized investment castings for different industries. Our skilled team, backed by extensive experience in the foundry market, plays a pivotal role in ensuring exceptional customer satisfaction. Their dedication, combined with the innovative vision of our management, drives our success. By developing continuous awareness and staying aligned with the latest advancements, we remain at the forefront of industry developments and deliver innovative solutions.

Product Details:

Investment casting, often referred to as lost wax casting, is a sophisticated manufacturing process that allows for the creation of intricate components, particularly in the production of pump parts. The process of investment casting for pump components begins with the creation of a master pattern, which serves as an exact duplicate of the desired component. This pattern can be made from varied materials such as metal,plastic or even wax. In modern applications, 3D printing technology is frequently employed to enhance precision and efficiency in producing these master patterns. The next stage in the casting of pump components involves the formation of wax patterns, where molten wax is injected into the die to form the desired shapes. Once these wax patterns are formed, they are assembled into a cluster to create a single mold.

The subsequent step is the creation of a shell mold which involves coating the wax patterns with a ceramic material to form a rigid shell. This shell must be heated to remove the wax, resulting in hollow molds that can withstand high temperatures. The wax removal phase is critical as it ensures that no traces of wax remain which could compromise the integrity of the final casting. Later, in the process of casting of pump components , molten metal is poured into these molds during the pouring phase. The metal fills the cavity left by the wax and takes on its shape as it cools and solidifies. Once cooled, the shell mold is broken away to showcase the fabricated part in what is known as extraction from the shell mold.

The final stage in the investment casting for pumps involves post processing operations which may include cleaning, machining and surface finishing to achieve the desired specifications and tolerances for pump components. This meticulous process allows manufacturers to produce parts with exceptional dimensional accuracy and surface finish quality. Investment casting for pump components is particularly beneficial for producing intricate shapes that are frequently necessary in pump design because of their operational requirements. The ability to produce components with tight tolerances ensures that pumps function efficiently and reliably in different applications including those in harsh environments where durability is crucial.

Components:

1.Master Pattern: The master pattern, an essential element in investment casting for pump components, serves as the initial reproduction of the desired pump component. It is typically crafted from durable materials like metal or wax.

2.Wax Patterns: Formed by injecting molten wax into a die, these wax patterns replicate the exact shape of the pump component and play a critical role in the investment casting process.

3.Wax Removal: The later activity in the process of investment casting for pump components is subjected to heat to remove the wax pattern. This step creates a precise hollow cavity within the mold, ready for metal pouring.

4.Pouring: Molten metal is carefully poured into the ceramic shell mold, filling the cavity left by the wax and beginning the transformation into the pump component.

5.Cooling and Solidification: The molten metal cools and solidifies inside the mold, taking on the exact shape of the pump component as designed.

6.Shell Removal: After solidification, the ceramic shell mold is broken away to unveil the newly cast investment casting pump component, crafted to meet precise requirements.

7.Post Processing: Additional steps such as cleaning,machining and surface finishing are performed in the process of investment casting for pump components to refine and ensure it adheres to the specified design and quality standards.

8.Quality Control: Rigorous inspection processes ensure that every pump component produced through investment casting meets stringent performance criteria, ensuring reliability in industrial applications.

Application Industries:

1. Oil and Gas
2. Chemical Processing
3. Water and Wastewater Management
4. Power Generation
5. Food and Beverage
6. Pharmaceutical and Medical
7. Marine and Shipbuilding
8. Aerospace
9. Automotive
10. HVAC and Refrigeration

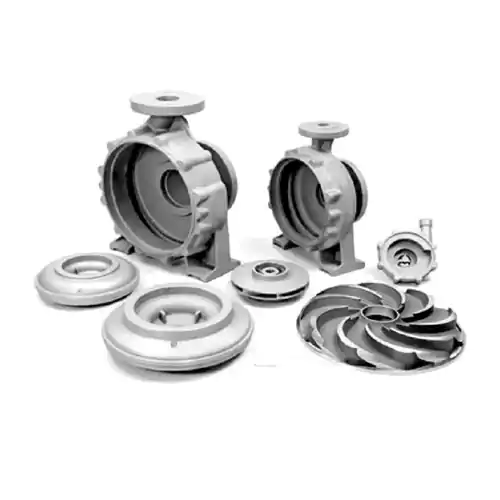

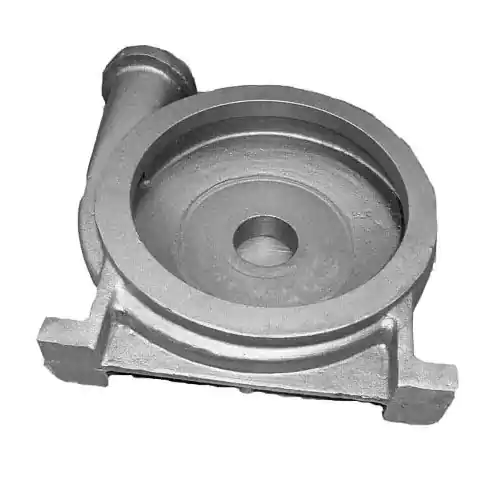

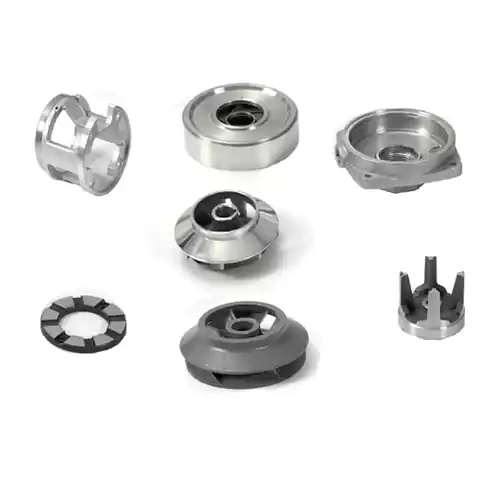

Investment casting is an effective manufacturing process for producing high-precision pump components, especially when complex shapes and fine tolerances are required. It offers the ability to create intricate, high-performance parts with minimal post-processing, making it an ideal choice for producing pump impellers, casings, wear rings, and other critical pump components.
